1. Main parameters of electroplating production line
| No | Item | Specification |
| 1 | material | carbon steel |
| 2 | product size range | according to customer |
| 3 | coating type | zinc |
| 4 | coating thickness | 1~30μm |
2. Technological process of rack electroplating
Racking→Alkaline degreasing→Electrolytic degreasing→Water rinsing→Pickling→Water rinsing→Zinc plating→Water rinsing→Bright Dipping→Water rinsing→Passivation→Water rinsing→Hot water rinsing→Drying→Put down
3. Main process introduction
| Alkaline degreasing:remove the oil on the surface of products |
| Electrolytic degreasing: further remove the oil on the surface of products to ensure the binding force of the coating . |
| Pickling: remove the oxide from the surface of products and activate the product surface . |
| Water rinsing: clean the product thoroughly after the tank to avoid mutual contamination of the tank. |
| Zinc plating: the product is coated with a uniform coating. |
| Bright dipping:Remove the alkaline film on the surface of zinc layer and increase the brightness of zinc layer. |
| Passivation:increase corrosion resistance of zinc layer to prevent white rust during transportation. |
| Hot water rinsing:clean the surface of product and improve the temperature of the proucut itself |

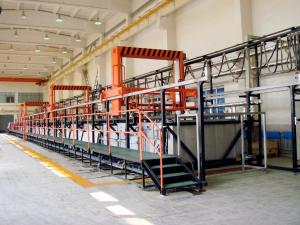

4.Photos
5.Solution preparation
Zinc plating solution:
ZnCl2 30-70 g/L
KCl 200-260 g/L
H3BO3 25-35 g/L
Wake up agent 16-25 ml/L
Brightening agent 0-1 m1/L
6.Common faults and solutions
Coating blooming (fog)
Possible causes Solutions
1. Pre treatment with oil 1. Strengthen oil removal
2. Poor post-treatment processing 2. Improvement
3. Excessive organic and metal impurities 3. Major treatment
4. Excessive brightening agent 4. Electrolysis at low pH
5. Less boric acid 5. Supplement
6. Aging of the dipping liquid 6. Replacement
7. insufficient anode area 7. Adding multiple anodes
7.Packaging & Shipping
We can pack it by pallet, or according to the customers' specific requirements.
Port: Shanghai/Ningbo
8. Our Services
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Correct technological process control
(4) Remove simple problem
All the electroplating machine of our company have already been widely used in electroplating area.
Any doubt please contact us.
