Steel Bar Combined Drawing Machine

Name: Steel Bar Combined Drawing Machine
Brand: suntech
Price: 20000 USD

Quality Steel Bar Combined Drawing Machine wholesale

Brand Name : suntech

Model Number : LZ7/560

Certification : ISO

Place of Origin : CHINA

MOQ : 1

Price : USD+20000+SET

Supply Ability : 100 SET PER YEAR

Delivery Time : 120DAYS

Packaging Details : Pallet

Material : Steel

Type : Combined

Color : Blue

Model : 16T

Mode : Automatic

Application : cutting

Contact Now

Combined drawing lines for round, square, hexagonal, and special-shaped bars

I. Product Description
Combined drawing lines for round, square, hexagonal, and special-shaped bars. Starting from safe loading of the uncoiler through to the finished bar bundle, our engineers ensure your line components are perfectly tailored to your specific requirements. Depending on your application, you can choose from two types of continuous drawing systems: conventional cam-type drawing machines and chain track drawing machines.

II. Technical parameter

No.	Description	Parameters
1	Max. drawing force	200 KN
2	Drawing speed	5~35 m/min
3	Process material	Carbon steel, Alloy steel, Stainless steel
4	Finished product	Round bar: Ø15-Ø36mm Hexagonal bar: H15mm-H31mm
5	Finished length & tolerance	2.5-7.0m(±5mm)
6	Surface roughness	Ra0.8-Ra1.6μm
7	Straightness	Round bar ≤0.3mm/m
8	External diameter tolerance	±0.02mm
9	Totoal power	330KW(main machine: 200KW)
10	Electric power source	3Phase/380V/50Hz
11	Air pressure	0.4MPa±0.1MPa
12	Total weight	60 tons

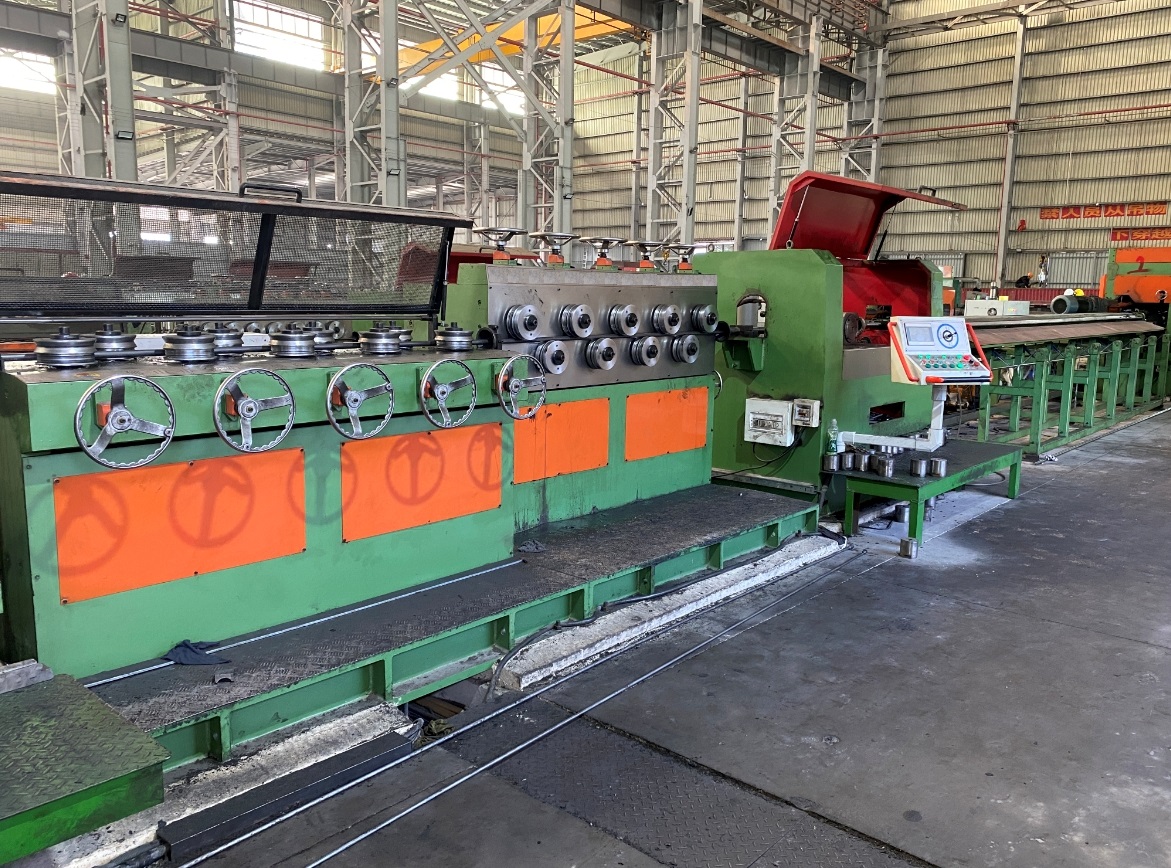

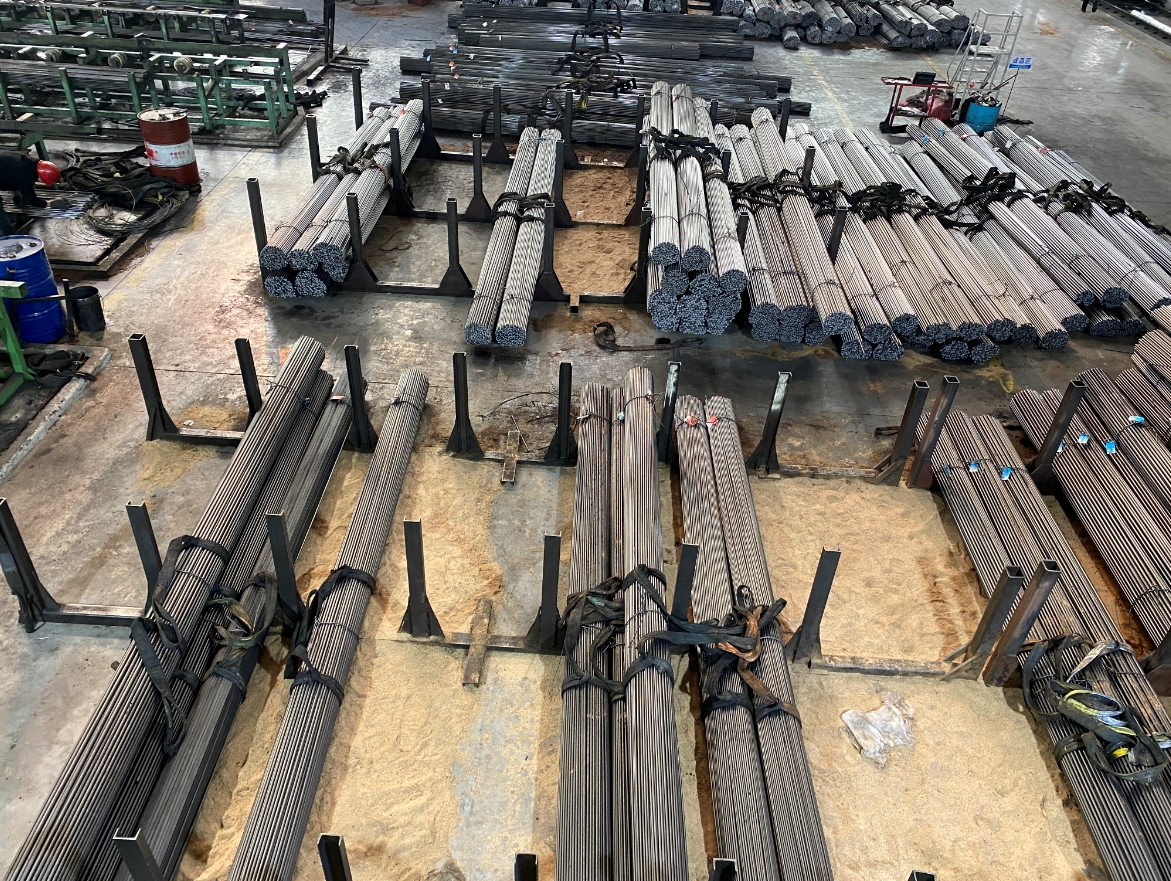

III. Reference pictures

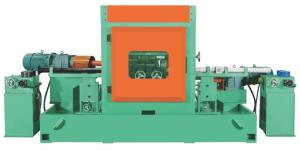

Steel Bar Combined Drawing Machine
