S-FTH High Quality Brad Nails Forming Machine

Product Categories

Hangzhou Suntech Machinery Co, Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: SFTH High Quality Brad Nails Forming Machine
Brand: SUNTECHMACH
Price: 1 USD

Brand Name : SUNTECHMACH

Model Number : S-FTH-1 S-FTH-2

Certification : ISO, CE

Place of Origin : China

MOQ : 1set

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 30 sets per month

Delivery Time : Est. 30days(To be negotiated)

Packaging Details : We can pack it by pallet , or according to the customers' specific requirements

Running speed : 70-110times/minute

Driven motor(KW) : 9.0

Power supply : Three phase, 380V, 50Hz

Machine weight(kg) : 2300-3100kg

After-sales Service Provided : Engineers Available To Service Machinery Overseas, Online Support

Contact Now

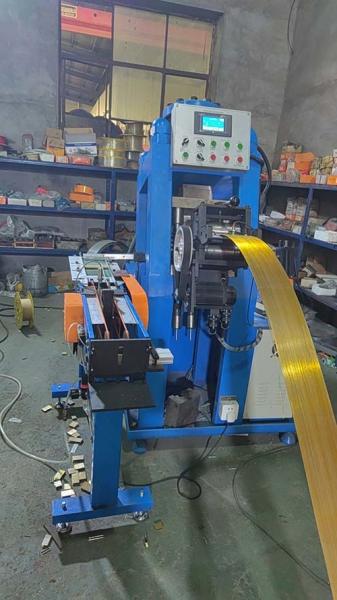

S-FTH High Quality Brad Nails Forming Machine

Product Description

High pressure hydraulic liquid circulation is used, which have low noise and few malfunction.

The electric diagram adopt PLC concentrate control.

Prolong delivery device is also fixed and can collect the nails automatically.

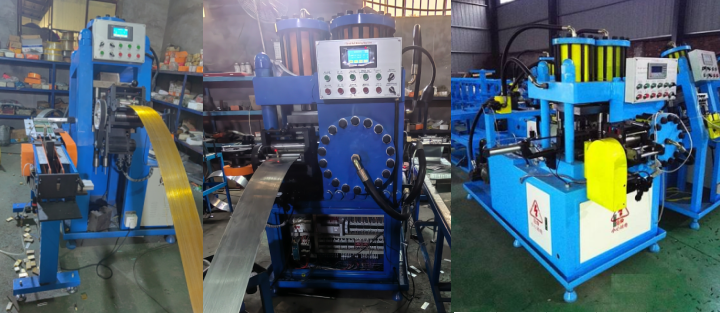

S-FTH High Quality Brad Nails Forming Machine

Technical parameter of brad nails forming machine

Model	S-FTH-1 for high quality side of 18GA nails	S-FTH-2 for high quality side of 16GA nails
Running speed(times/min)	90-110	70-90
Width of treated glue wire(mm)	120-125	150-165
Thickness of treated glue wire(mm)	0.9-1.18	1.3-1.8
Length of brad nail(mm)	20-50	20-64
Driven motor(KW)	9.0	9.0
Diameter of hydraulic cylinder(mm)	For cutting: 160	For cutting: 220
Diameter of hydraulic cylinder(mm)	For pressing:220	For pressing:280
Diameter of hydraulic cylinder(mm)	For forming: 220	For forming: 280
Power supply	Three phase, 380V, 50Hz	Three phase, 380V, 50Hz
Machine size(LWH mm)	230011001700	230012001800
Machine weight(kg)	2300	3100

380V Brad Nails Forming Machine
